Buyers order double wall corrugated far more often than their products actually need it, and that habit costs real money — a material premium on every unit, plus fewer boxes per container on every single shipment afterwards.
So let’s work through when each construction genuinely earns its cost. Because the honest answer, for a lot of loads, is that single wall handles it perfectly well.
What Is Double Wall Corrugated Board?

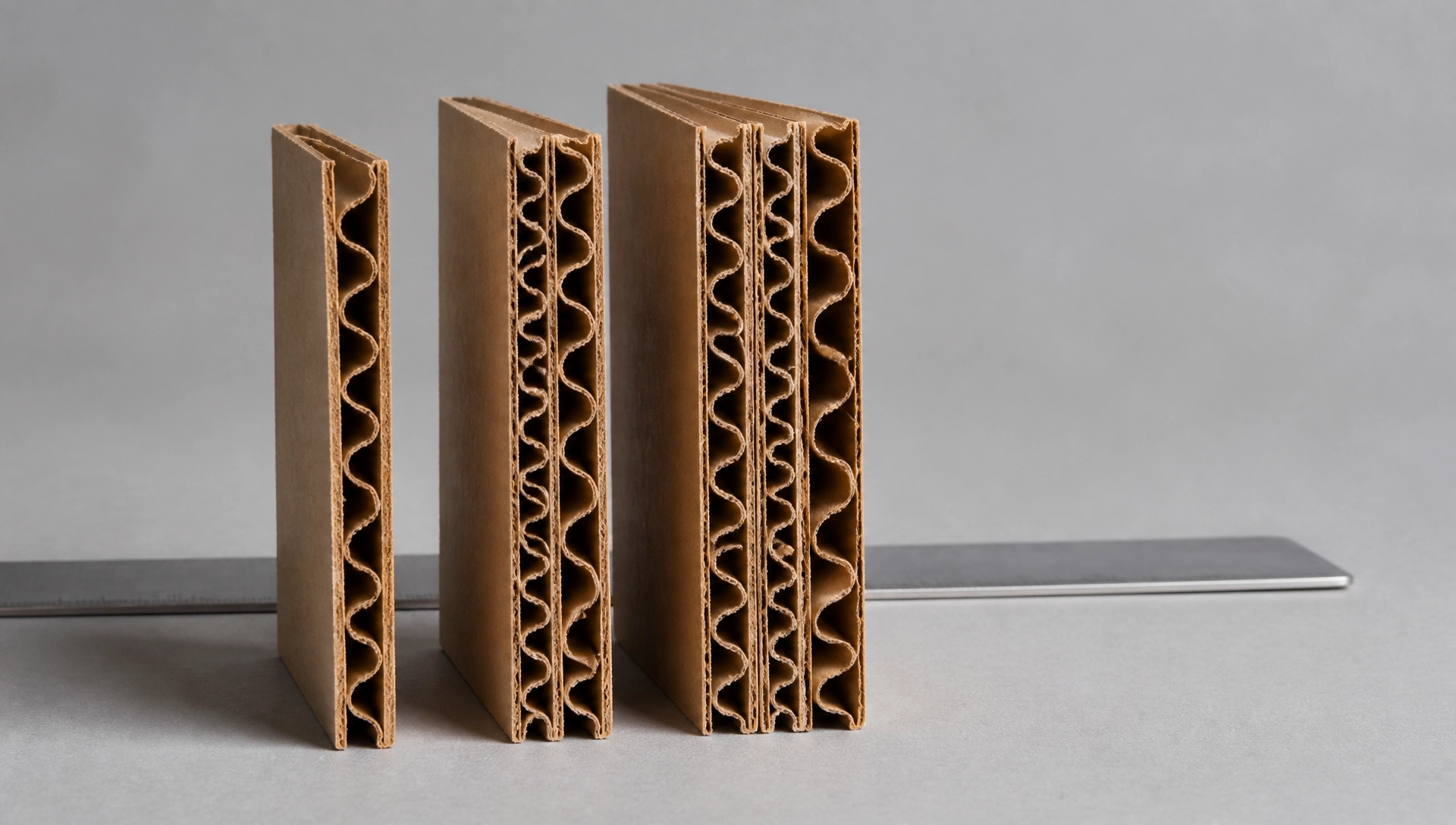

The Three Constructions
Single wall uses one fluted medium between two liners, whereas double wall corrugated builds on that. Double wall corrugated adds a second flute and a middle liner, giving five papers total. Triple wall stacks three flutes with four liners, and it exists for genuinely heavy industrial work.
What the Extra Layer Actually Does
The second flute adds compression resistance and puncture protection. Consequently boxes stack higher and survive rougher handling. However — and this matters — it does not automatically make a weak specification strong.

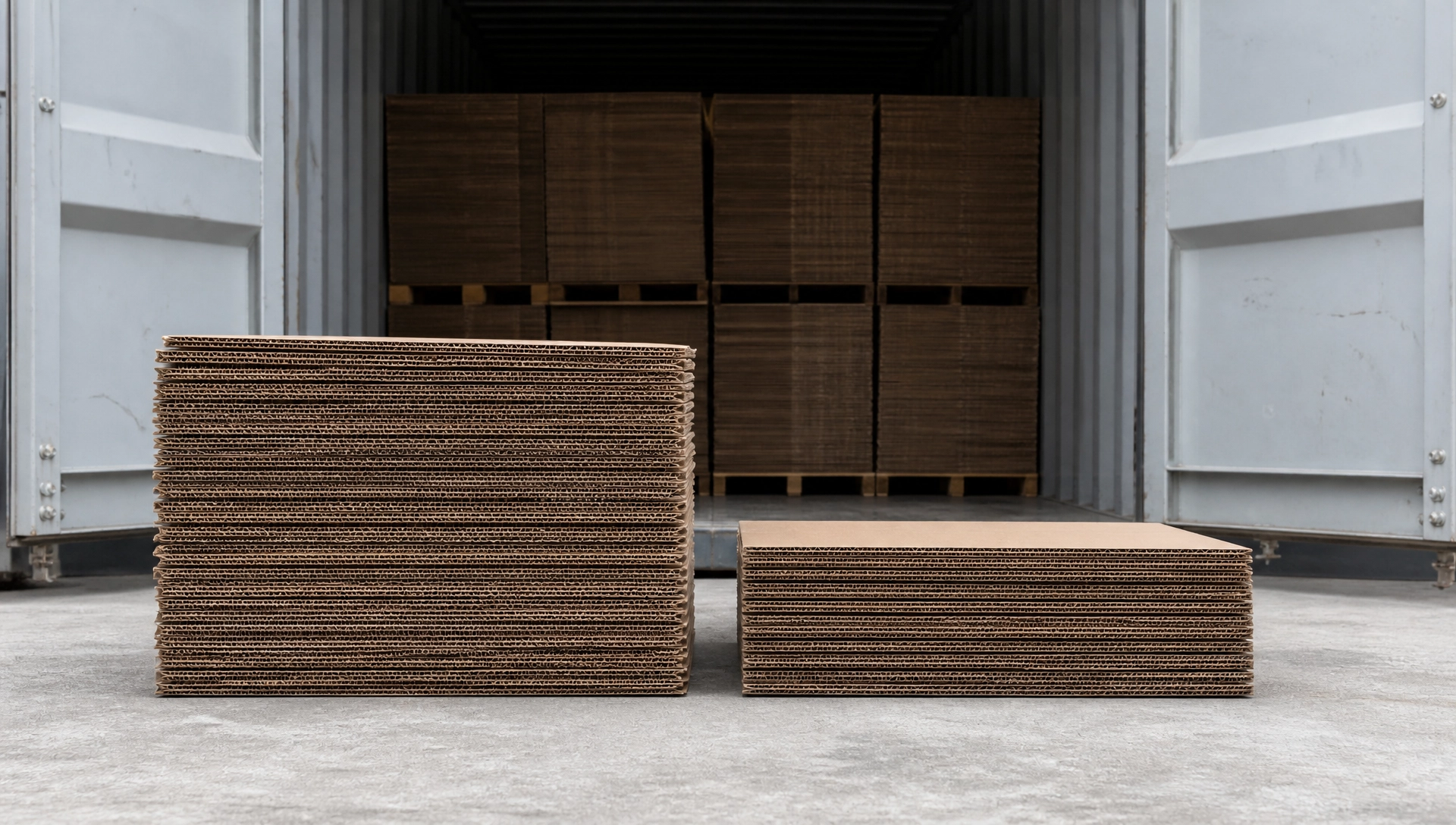

Thickness Is the Hidden Cost
Every added layer increases board thickness. Therefore fewer flat blanks fit on a pallet, and fewer assembled boxes fit in a container. That penalty repeats on every shipment for the life of the programme.
Why the Decision Feels Risky
Nobody gets fired for over-specifying. Frankly, that’s the whole problem: buyers default upward because failure feels more visible than waste, even though waste costs more over time.
Common Applications for Double Wall Corrugated and Alternatives
Different loads genuinely need different constructions:
- Single wall — E-commerce parcels, apparel, cosmetics outers, food cases, and most single-trip distribution.
- Double wall — Export cases, heavier unit weights, tall pallet stacks, and multi-leg journeys with repeated handling.
- Triple wall — Machinery parts, industrial components, bulk agricultural produce, and anything approaching crate territory.
Notably, plenty of buyers running double wall corrugated across their whole range could drop half those SKUs to single wall without any performance change. That audit is usually worth doing.
Material Options for Double Wall Corrugated Board
Liner Choices
Kraftliner delivers higher tensile strength and holds up better in humidity, whereas testliner uses recycled fibre and costs less. Our corrugated board grades guide compares both in detail.
The Fibre Trade
Here’s something counterintuitive: upgrading liner fibre on single wall sometimes outperforms staying with cheaper fibre on double wall corrugated. Additionally it keeps the board thinner, which protects your container fill.
Fluting Medium
Semi-chemical medium gives better compression recovery, while recycled medium costs less and suits lighter loads. In double wall the two mediums need not match, so you can specify each layer for its job.
Moisture Sensitivity
Board moisture sits between roughly 6.5% and 9.5%. Above that range compression strength drops away — and importantly, double wall corrugated loses strength in humidity too. Extra layers do not make a box waterproof.
Structure Options: How Double Wall Corrugated Combines
Common Double Wall Pairings
- BC — The workhorse. B’s flat crush resistance with C’s cushioning; standard for heavier shipping cases.
- EB — Fine outer for print quality, B beneath for strength; popular on retail-ready shippers.
- AC — Maximum cushioning and stack height for tall bulky loads.
- EE — Two micro layers giving rigidity without much bulk.
Our corrugated flute types guide explains each profile with real dimensions.
Triple Wall Combinations
Where double wall corrugated stops, triple wall begins: it typically pairs three different profiles, often something like AAC or BAA depending on whether cushioning or stiffness dominates. It behaves closer to a wooden crate than a carton.
Box Style Interactions
Full overlap flaps double panel thickness at top and bottom, which sometimes delivers what buyers hoped to get from an extra wall. Similarly, a well-designed insert transfers load away from the walls entirely.
Related Products: Corrugated Shipping Boxes / Folding Cartons / Inserts & Partitions

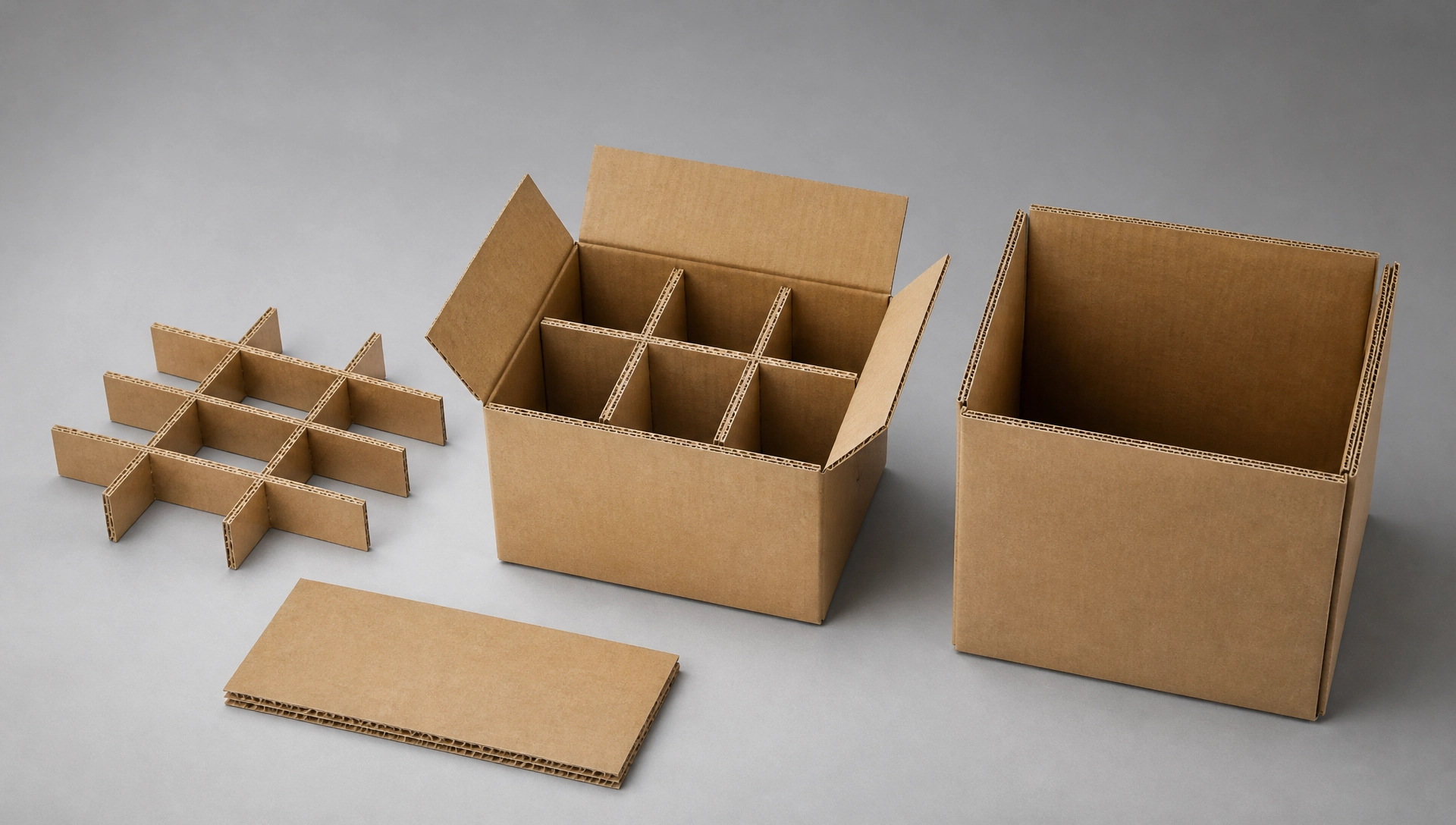

The Cheaper Alternative Nobody Suggests
Before moving to double wall corrugated, try partitions or a heavier single wall grade. Both often solve the problem for less, and neither costs you container volume the way an extra flute does.
Printing and Finishing on Double Wall Corrugated
Surface Behaviour
Print quality depends on the outer liner and outer flute, not on how many walls sit underneath. So double wall corrugated prints roughly as well as single wall using the same outer combination.
Washboarding
Flute lines telegraph through under heavy ink. Using a fine outer profile like E in an EB construction reduces it noticeably, though nobody eliminates it entirely.
Print Methods
Flexographic printing suits every construction and stays economical at volume. Litho lamination delivers photographic quality. Digital removes plate costs for short runs and versioned artwork.
Creasing and Folding
Thicker board needs deeper creases and wider fold allowances. Consequently a dieline drawn for single wall will not simply transfer to double wall — the tooling genuinely differs.
Compliance and Sustainability
Material Weight
Wall count directly affects material weight, which matters for EPR reporting. See our EPR Packaging Compliance guide for component reporting requirements.
Certified Fibre
FSC chain of custody applies to every layer. Our FSC Certified Paper Packaging guide explains how documentation flows through.
Food Contact
Where board contacts food directly, EU Regulation (EC) No 1935/2004 applies alongside GMP under Regulation (EC) No 2023/2006. FEFCO publishes GMP standards for corrugated food packaging specifically.
The 2026 Calendar
PPWR applies from 12 August 2026 across the EU. Meanwhile EUDR obligations fall on 30 December 2026 for large and medium operators, then 30 June 2027 for micro and small operators.
Right-Sizing Is the Real Win
Dropping unnecessary layers reduces material genuinely. Our recyclable paper packaging guide covers defensible claim wording.
How to Choose Double Wall Corrugated: Steps 1–3
Step 1: Send the Load Data
First, share internal dimensions, product weight, and units per case. Internal measurements matter most, since external dimensions cause fit failures more than anything else.

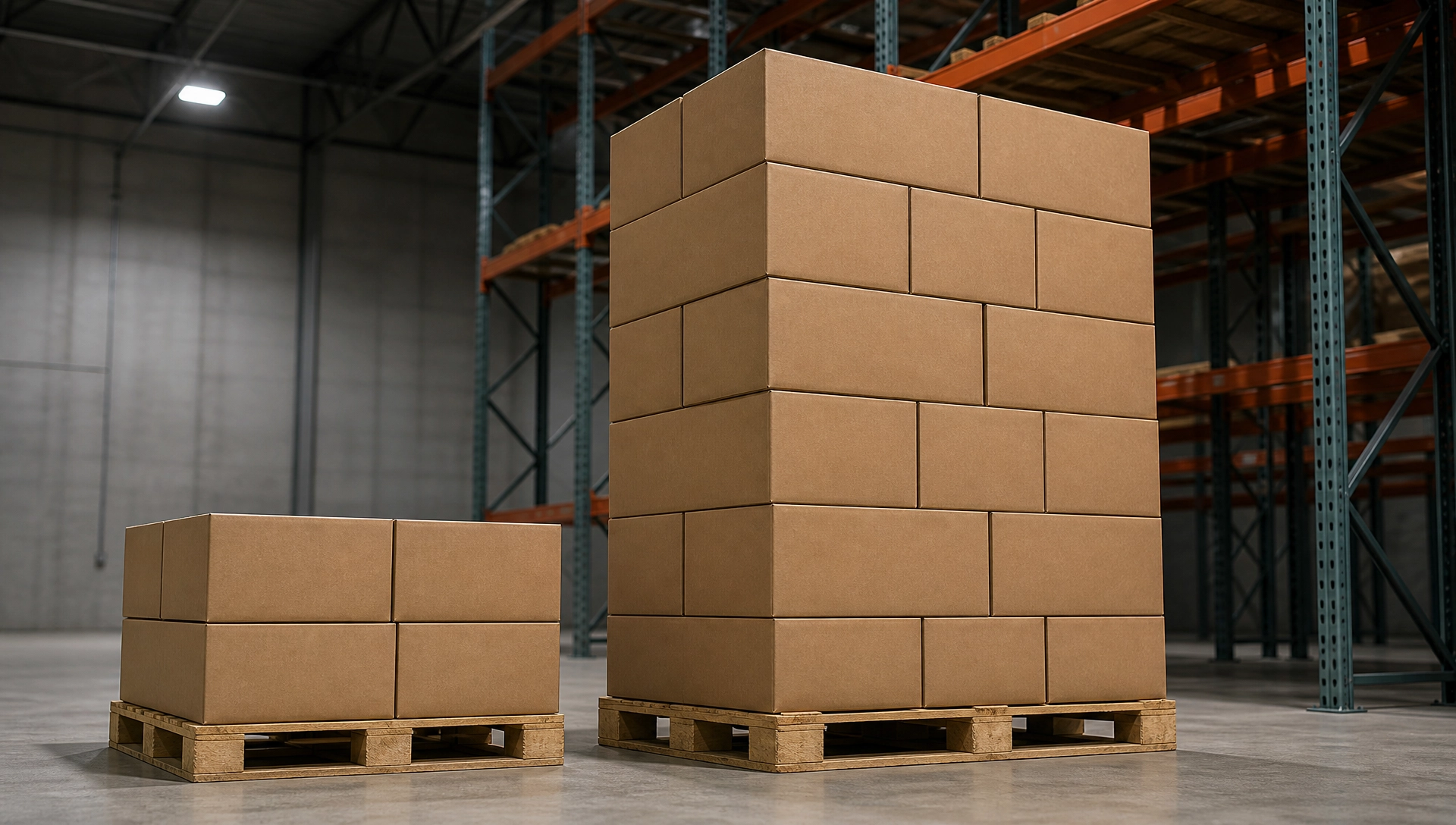

Step 2: Describe the Stack
Next, tell us pallet stack height, storage duration, humidity, and destination port. Stacking is where single wall versus double wall corrugated actually gets decided.
Step 3: Test Before Committing
Then let us sample both constructions. Handling two physical boxes settles the argument faster than any specification discussion — and it occasionally saves buyers a great deal.
Sampling, MOQ and Lead Times
Step 4: Compare Physically
We produce unprinted structural samples in each construction so you can load them and compare. Our custom packaging project workflow covers all eight stages with realistic timings.
Step 5: Verification
Documented checks run from incoming board through final inspection. See our quality control process for how records get compiled.
Commercial Terms
MOQ typically starts around 1,000–3,000 units depending on construction and print method. Lead times usually run 15–30 days after sample approval, plus tooling where die-cutting applies.
Artwork Requirements
Send AI, EPS, or high-resolution PDF on our dieline with Pantone references and 3mm bleed. Remember that double wall dielines differ from single wall, so use the correct one.
Why Choose Pack Packaging
Manufacturing Scale
- 20,000㎡ factory — Printing, die-cutting, laminating, and assembly under one roof.
- 2,000㎡ food-grade workshop — Separated clean area for food-contact production.
- 10,000,000+ monthly capacity — Pilot runs through container programmes without changing supplier.
Engineering Support
- 20+ in-house designers — Structural design and dielines, never outsourced.
- Free structural design — Dielines and 3D prototypes before you commit.
- G7 Master colour management — Measurable consistency across production runs.
- ISO 9001 and FSC certified — Documentation supplied with every order.
An Honest Note
We lose margin every time we talk a buyer down from double wall corrugated to single wall. We do it anyway, because a customer who trusts our recommendations orders for years — whereas one who discovers they overpaid for a decade does not.
FAQ: Choosing Double Wall Corrugated
Q1: Is double wall twice as strong as single wall?
No. The relationship is not linear, and actual performance depends on flute pairing, liner grades, and box dimensions. Send your load data and we will model it properly.
Q2: When do I genuinely need double wall corrugated?
Typically for heavier unit weights, tall pallet stacks, long humid storage, or multi-leg export journeys with repeated handling. Single-trip parcel shipping rarely justifies it.
Q3: Can heavier single wall replace double wall?
Often, yes. A stronger liner combination on single wall sometimes matches lighter double wall while staying thinner — which protects your container fill.
Q4: Does triple wall replace a wooden crate?
Sometimes. It handles heavy static loads well and avoids ISPM 15 timber treatment requirements entirely, though it dislikes repeated impact.
FAQ: Cost and Logistics
Q5: How much more does double wall cost?
More material, slower corrugator speeds, and thicker board reducing container fill. The unit price difference understates the total cost — ask for a landed comparison instead.
Q6: Will switching to single wall increase my damage rate?
Not if the specification suits the load. That is precisely why we sample both constructions before you commit to volume.
Q7: Can you audit my existing specifications?
Yes. Send current samples and volumes, and we will identify which SKUs are over-specified. Buyers frequently find several.
Q8: What do you need for an accurate quotation?
Internal dimensions, product weight, monthly volume, destination port, and artwork. That combination lets us specify properly rather than quoting a placeholder.
