You may have already confirmed the product, packaging structure and quotation. Затем, just when the project seems ready to move forward, the supplier asks one more question:
“Can you send us the print-ready artwork?»
This is where many custom packaging projects suddenly slow down.
Correct custom packaging artwork files help prevent missing fonts, blurry logos, incorrect colors, misplaced hot stamping, outdated dielines and unnecessary sample revisions. Что еще более важно, good artwork allows the packaging supplier to understand exactly how your box or tube should be printed and finished.
Так, before you send that final AI or PDF file, it is worth checking whether the artwork is actually ready for production—not simply whether it looks good on your screen.
Что это за тип упаковки??
In this article, we are not talking about one particular box or paper tube. Вместо, we are talking about the technical artwork required to manufacture custom paper packaging.
Custom packaging artwork files are production files built on the approved packaging dieline.
Unlike a JPG mockup, they tell the factory where to:
- Распечатать
- Cut
- Fold
- Glue
- Apply foil
- Тиснение
- Дебосс
- Apply spot UV
- Create a window
- Position regulatory text
Другими словами, the mockup explains the visual idea, while the technical artwork explains how that idea becomes a physical package.
Common Artwork Components
A packaging production file may contain:
- Дилайн
- Cut line
- Crease line
- Glue area
- Bleed
- Safe area
- CMYK artwork
- Цвета Пантон
- Product text
- Штрих-код
- Hot-stamping layer
- Embossing layer
- Debossing layer
- Spot UV layer
- Window line
- Insert artwork
Поэтому, the final artwork should always be created around the approved production structure rather than an estimated size.

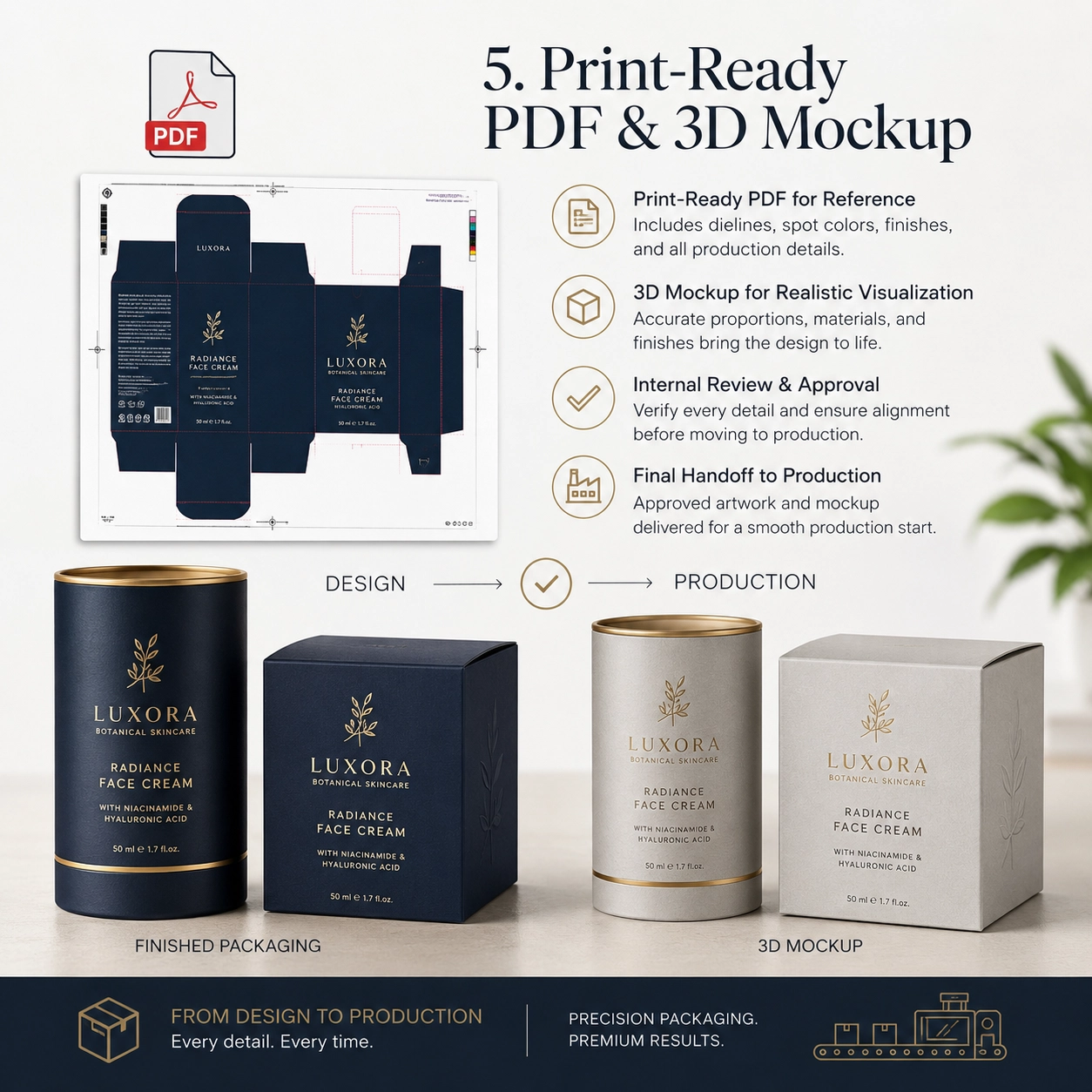

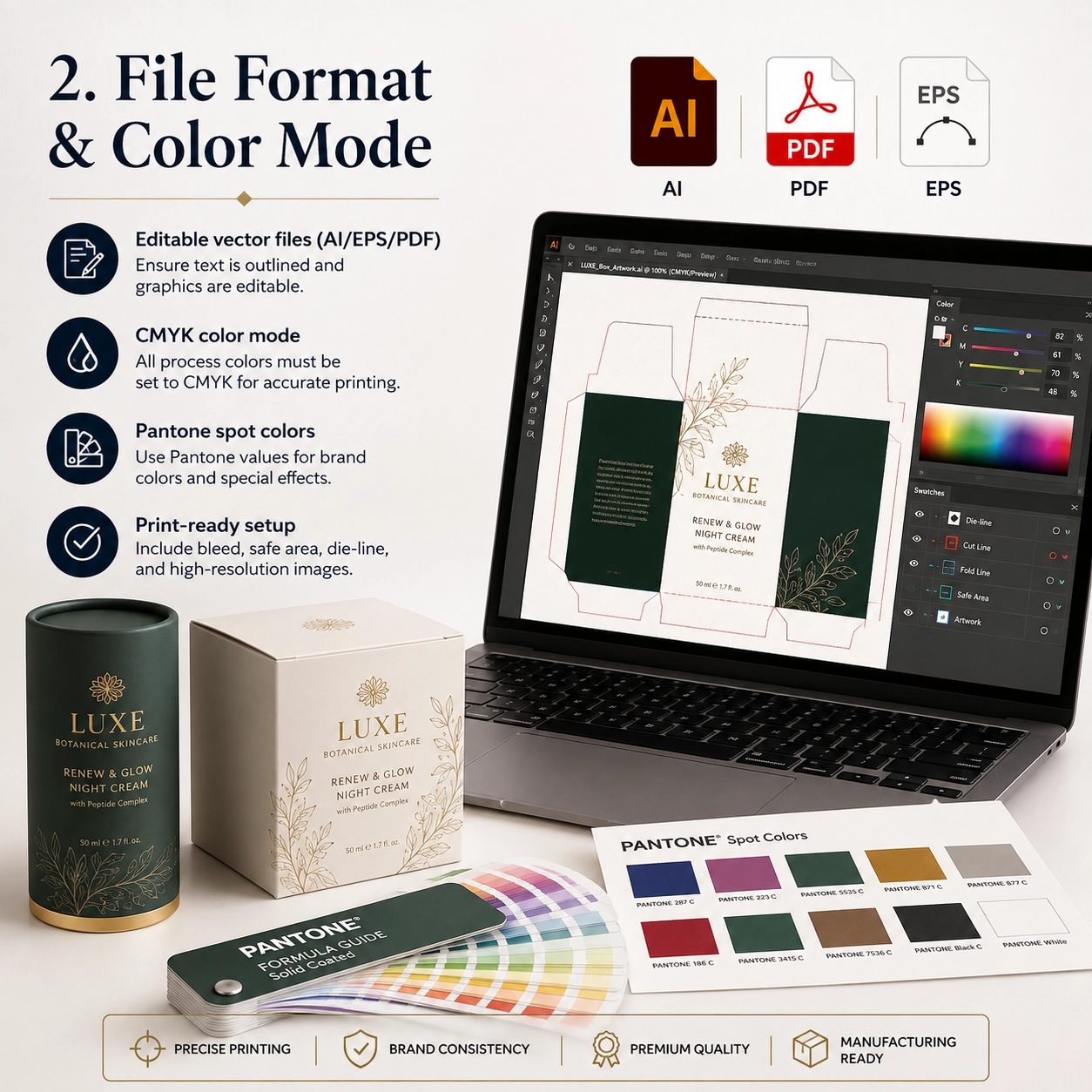

Preferred Artwork Formats
For many packaging projects, editable formats such as these are practical:
- ИИ
- Editable PDF
- прибыль на акцию
Тем временем, high-resolution PSD or TIFF files may be used for photographs or raster artwork.
Vector graphics are especially useful for logos, текст, dielines and finishing areas because Illustrator vector artwork can be scaled for print without the pixelation associated with low-resolution raster graphics.
Why JPG or PNG Is Usually Not Enough
A JPG may show the design clearly. Однако, it normally does not contain editable:
- Dielines
- Spot colors
- Foil paths
- Embossing paths
- Cutting paths
- Separate finishing layers
Поэтому, a JPG is better treated as a visual reference rather than the only production file.
If you only have a JPG, tell the packaging supplier early. The design or prepress team can then determine whether the artwork needs to be rebuilt.
Общие приложения
The preparation of custom packaging artwork files varies according to the product category.
Perfume Packaging
Perfume packaging often looks visually simple but may involve several premium finishing processes.
Например, a rigid perfume box or paper tube may require separate layers for:
- Dark green Pantone printing
- Логотип из золотой фольги
- Embossed brand mark
- Матовая ламинация
- Insert branding
If the gold logo must also be embossed, the supplier needs to know whether the embossing follows exactly the same shape.
Поэтому, separate the layers clearly.
A practical Illustrator layer structure could look like:
- DIELINE
- CMYK PRINT
- PANTONE
- GOLD FOIL
- EMBOSS
- SPOT UV
- INSERT
This makes communication much easier.
Уход за кожей и косметика
Cosmetic packaging often contains more written information than perfume packaging.
Typical content may include:
- Название продукта
- Ингредиенты
- Направления
- Net contents
- Warnings
- Manufacturer details
- Штрих-код
- Batch information
Следовательно, typography and safe areas become especially important.
Before sending the artwork, check whether small text is too close to:
- Fold lines
- Cutting edges
- Windows
- Glue flaps
- Tube seams
Чай и Кофе
Tea and coffee packaging frequently combines branding with detailed product information.
Это может включать в себя:
- Country of origin
- Flavor notes
- Инструкции по завариванию
- Ингредиенты
- Вес нетто
- Штрих-код
If the artwork is printed on natural kraft paper, keep in mind that the brown paper base will affect how colors appear.
Поэтому, do not assume that a color shown on a white monitor will reproduce identically on kraft paper.
Chocolate and Candy
Chocolate and confectionery packaging often combines:
- CMYK illustrations
- Фотография
- Золотая фольга
- Windows
- Информация о продукте
A window introduces an additional technical area.
Поэтому, the artwork should clearly show the window die-cut line while keeping text and important graphics outside the required production tolerance.
Candle Packaging
Candle packaging often uses simpler, more premium artwork.
A typical design might combine:
- Dark background
- Brand logo
- Scent name
- Botanical illustration
- Золотая фольга
- Вес продукта
Однако, dark surfaces can make small printing or finishing inconsistencies more visible.
Поэтому, physical sampling is especially valuable for premium candle packaging.
Подарочная упаковка
Gift packaging gives designers more creative freedom.
Однако, structures such as drawer boxes, magnetic boxes and telescopic packaging have several visible surfaces.
Следовательно, the designer should consider the entire unboxing sequence rather than designing only the front panel.
Варианты материалов
The paper selected for production affects how custom packaging artwork files will reproduce in real life.
Крафт-бумага
Natural kraft paper has a brown base tone.
Поэтому, bright colors may appear more muted compared with printing on white coated paper.
Suitable design directions include:
- Черная печать
- Dark green
- Brown
- White ink where supported
- Медная фольга
- Matte gold foil
Фактически, the natural material itself can become part of the artwork.
Художественная бумага
Coated art paper provides a smooth surface for:
- CMYK-печать
- Пантон
- Фотография
- Прекрасная типографика
- Градиенты
- Подробные иллюстрации
Afterward, it can receive:
- Матовая ламинация
- Глянцевая ламинация
- Мягкая ламинация
- Ламинирование против царапин
Специальная бумага
Specialty papers may include:
- Текстура льна
- Leather texture
- Металлическая бумага
- Перламутровая бумага
- Прокрашенная бумага
- Рельефная текстура
Однако, deeply textured surfaces can reduce the visual clarity of very fine details.
Поэтому, extremely thin logo lines or small foil details may need to be simplified before production.
Пищевая бумага
Food packaging may require approved food-contact materials or internal barrier components.
Однако, these technical materials are generally specified separately from the outer decorative artwork.
Например, the external design may be printed on art paper, while the inside uses:
- Пищевая бумага
- Бумага с полиэтиленовым покрытием
- Жиростойкая бумага
- Фольга-лайнер
- Внутренний чехол
Фольга-лайнер
Чай, кофе, nuts and snack tubes may use an aluminum foil or multilayer liner.
Обычно, the exterior artwork file still controls only the outer branding.
Однако, if an internal component also requires printing, provide separate artwork and clearly identify the part.
Варианты структуры
Packaging structure should be finalized before the designer completes custom packaging artwork files.
В противном случае, a structural change may force the artwork to be redesigned.
Paper Lid Tube
A standard paper tube normally contains:
- Main body
- Крышка
- Bottom
- Seam area
Avoid placing the main logo directly over the vertical seam.
Вместо, define the primary viewing area.
Плечо-шея трубка
A shoulder-neck tube contains an inner neck that becomes visible after the lid is removed.
This creates another branding opportunity.
Например:
- Dark green exterior
- Gold inner neck
- Cream interior
Однако, all visible components should be included in the approved material and production specification.
Telescopic Structure
A telescopic tube may use:
- Long upper lid
- Short lower base
- Inner insert
Поэтому, the designer should confirm:
- Upper-section height
- Lower-section height
- Overlap
- Front orientation
Do not guess these dimensions.
Окно Упаковка
Window artwork must use the approved die-cut position.
The design should consider:
- Window shape
- Window size
- Film area
- Product position
- Safe area
Более того, the real product should remain aligned behind the window.
Paper Tube With Insert
An insert may use:
- Ева
- ЭПЕ
- Картон
- Формованная целлюлоза
- Plastic tray
If the insert includes printed paper or a branded card, provide a separate artwork file.
Push-Up Tube
Push-up paper tubes contain moving internal components.
Поэтому, critical graphics should stay away from areas where movement or seams may affect visibility.
Twist-Up Tube
Twist-up packaging requires precise dimensions.
По этой причине, the final dieline should be approved before artwork production begins.
Sleeve Packaging
Sleeves can be very useful for multiple SKUs.
Например, one base package may be used for five different products while each product receives a different sleeve.
Как результат, brands can reduce structural complexity while maintaining product differentiation.

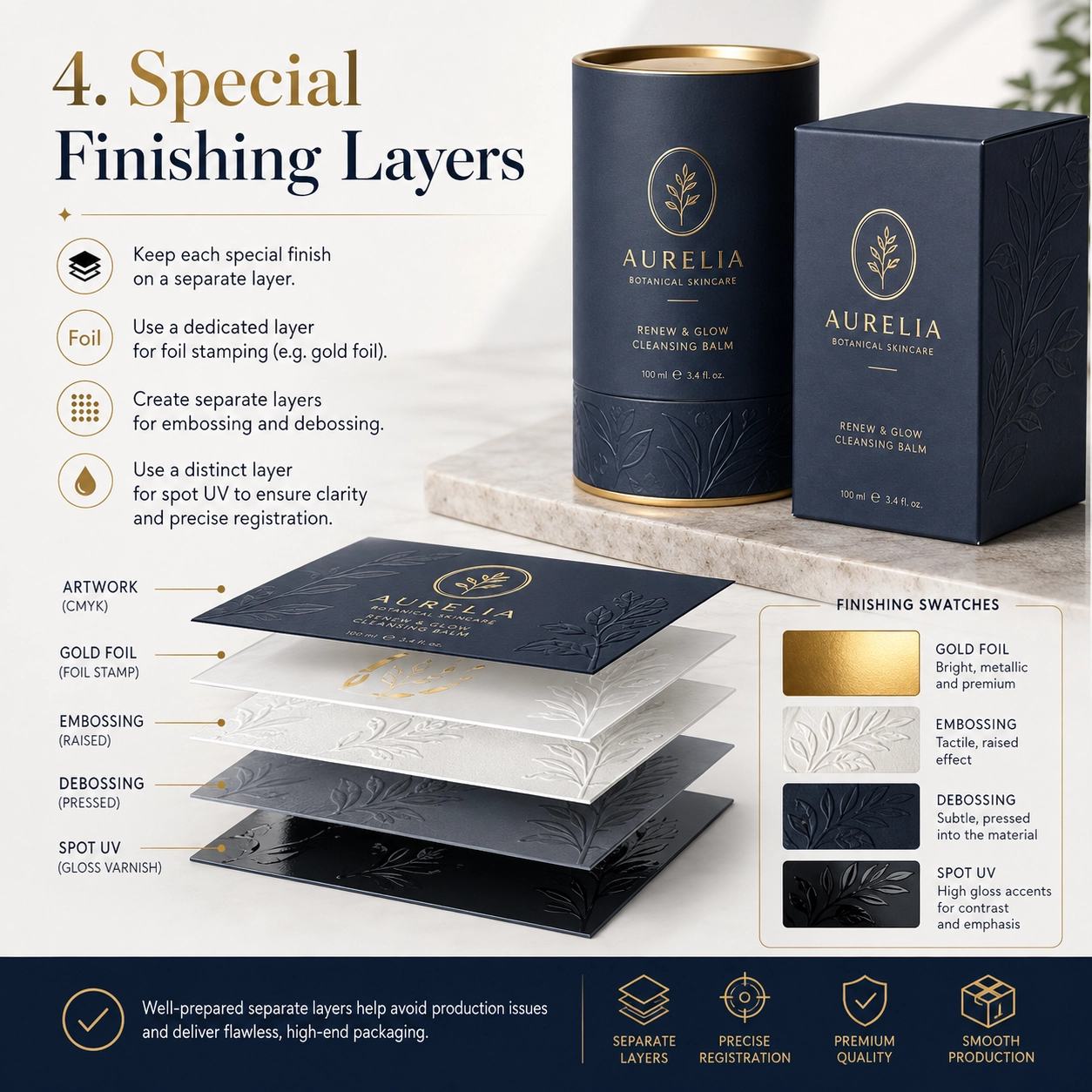

Печать & Варианты отделки
This is where custom packaging artwork files become especially important.
Different printing and finishing processes should not be merged into one unidentified artwork layer.
CMYK-печать
CMYK is commonly used for process printing involving:
- Фотография
- Градиенты
- Illustrations
- Multicolor graphics
Adobe’s Illustrator print documentation instructs users to switch RGB documents to CMYK mode when preparing color separations for process printing.
Однако, printed color can still be influenced by the paper, чернила, coating and finishing.
Поэтому, do not approve critical brand colors solely from a phone or monitor.
Пантон / Spot Colors
Spot colors are useful when a brand requires a particular signature shade.
Например:
- Brand green
- Burgundy
- Navy
- Orange
Clearly identify the required Pantone or spot color in the artwork.
Do not simply write:
“Please match this green.”
Кроме того, request a physical proof when strict color matching is commercially important.
Горячая штамповка
Hot stamping should normally be provided as a separate vector layer.
Например:
GOLD FOIL
Do not create a gold gradient in Photoshop and assume that it communicates metallic foil production.
Вместо, provide a clean vector shape showing exactly where the foil should be applied.
Тиснение
Embossing raises the surface.
Поэтому, provide a separate vector layer showing the exact embossed area.
A simple label could be:
EMBOSS
If foil and embossing must register together, make that clear in both the artwork and production instructions.
тиснение
Debossing creates a recessed surface.
Like embossing, it should be supplied as a separate, clearly labeled vector area.
Точечный УФ
Spot UV создает глянцевый контраст в выбранных областях..
Поэтому, create a separate layer called:
SPOT UV
Do not merge the effect into the CMYK artwork.
Матовая ламинация
Full matte lamination normally applies across the entire printed surface.
Поэтому, it usually does not need its own artwork layer.
Вместо, specify the film in the finishing requirements.
Глянцевое ламинирование
Gloss lamination follows the same principle.
Однако, if only one logo or pattern needs gloss, the process may actually be spot UV rather than full gloss lamination.
How to Prepare Custom Packaging Artwork Files
Before sending custom packaging artwork files to the factory, go through the following workflow.
Шаг 1: Use the Final Approved Dieline
Never design final production artwork on an early structural drawing.
If the package dimensions change, request a new dieline.
Шаг 2: Keep the Dieline at Actual Size
Do not resize or stretch the dieline.
A production dieline should represent the actual package dimensions.
Шаг 3: Add Bleed
If background colors, photographs or illustrations reach the trim edge, extend them beyond the final trim line.
Illustrator supports document bleed and printer marks through its Marks & Bleed controls.
Many commercial projects use approximately 3 мм, but the packaging supplier’s specification should always take priority.
Шаг 4: Respect the Safe Area
Keep important elements away from trim and fold tolerances.
These elements include:
- Логотип
- Штрих-код
- Название продукта
- Ингредиенты
- Small text
Шаг 5: Prepare the Correct Print Color Mode
For process printing, prepare the file using the agreed CMYK workflow.
If Pantone colors are required, identify them separately.
Шаг 6: Check Fonts
Missing fonts can change text layout.
Поэтому, either outline the fonts where appropriate or package the required font resources according to the agreed workflow.
Adobe Illustrator’s Package command can collect the Illustrator file together with linked graphics and eligible font resources for handoff.
Always keep an editable master version before converting text into outlines.
Шаг 7: Check Linked Images
One of the most common handoff problems is missing linked images.
Illustrator’s Links panel shows placed linked and embedded files, while the Package function can gather linked assets for transfer.
Before sending the project, check that every required image is included.
Шаг 8: Keep Logos Vector Where Possible
Vector logos produce cleaner results for:
- Печать
- Горячая штамповка
- Тиснение
- Scaling
Avoid extracting a small logo from a website screenshot.
Шаг 9: Separate Special Finishing Layers
A good file structure could be:
- DIELINE
- CMYK
- PANTONE
- GOLD FOIL
- EMBOSS
- DEBOSS
- SPOT UV
- WINDOW
This makes the intended manufacturing processes obvious.
Шаг 10: Check Overprint
Overprint settings can change how overlapping objects reproduce.
Illustrator includes dedicated overprint and color-separation controls, so these settings should be reviewed during prepress when relevant.
Шаг 11: Export a Print-Ready PDF
Along with the editable file, export a high-quality PDF reference.
Illustrator supports PDF creation for print workflows, including PDF/X-related options.
The supplier can use the PDF to compare the intended layout against the editable artwork.
Шаг 12: Include a 3D Mockup
A 3D rendering is not the technical production file.
Тем не менее, it is very useful because it shows:
- Front orientation
- Opening direction
- Расположение логотипа
- Expected finished appearance
Другими словами:
Artwork tells the factory how to produce it.
Mockups tell the factory how you expect it to look.
Providing both reduces ambiguity.
Packaging Artwork Preflight Checklist
Before sending your file, проверять:
- Correct dieline
- Correct packaging size
- Bleed included
- Safe zone checked
- CMYK workflow confirmed
- Pantone colors identified
- Fonts supplied correctly
- Linked images included
- Logos are vector
- Image quality checked
- Barcode checked
- Text proofread
- Foil layer separated
- Embossing layer separated
- Debossing layer separated
- Spot UV layer separated
- Window position confirmed
- Dieline kept separate
- PDF exported
- Mockup supplied
- Final internal approval completed
Acrobat Pro’s Preflight tools are specifically designed to analyze PDFs for print-production problems before output.
How Artwork Affects Sampling and Production Time
Poorly prepared custom packaging artwork files can delay a packaging project before manufacturing even starts.
Например:
The supplier receives a JPG.
Then the editable artwork is requested.
Следующий, the AI file arrives but linked images are missing.
После этого, the correct images are supplied.
Однако, the dieline is outdated.
Once the dieline is corrected, the designer discovers that the foil layer has not been separated.
Another revision is required.
At this point, several days may have passed—even though no mass-production machine has started.
Поэтому, good artwork preparation can directly improve the efficiency of the packaging development process.
Planning Your Packaging Lead Time?
Artwork approval is only one part of the overall project.
If you are also planning sampling, production and delivery, прочитайте наш Custom Paper Tube Production Time: Complete Lead Time Guide.
That guide explains how:
- Artwork approval
- Выборка
- минимальный заказ
- Material availability
- Вставки
- Special finishing
- Multiple SKUs
can influence the complete production schedule.
Вместе, these articles answer two important purchasing questions:
Is my artwork ready for printing?
и
How long will production take after it is approved?
Common Artwork Mistakes
Sending Only a Screenshot
A screenshot may show the design direction, but it usually cannot provide the editable technical information required for production.
Поэтому, supply editable artwork whenever possible.
Designing Before the Structure Is Final
If the dieline changes, artwork positions also change.
Следовательно, finalize the packaging structure first.
Missing Linked Files
Check all linked photographs and graphics before sending the project.
Low-Resolution Logos
A logo copied from a website may look acceptable on a monitor but reproduce poorly in print.
Вместо, ask for the original vector version.
Using Too Many Unidentified Layers
Clear layer names reduce communication problems.
Например:
Layer 17 Copy 2
is much less useful than:
GOLD FOIL.
Merging Foil Into CMYK
The printer needs to know what should be printed and what should be foil stamped.
Поэтому, keep those processes separate.
Ignoring the Tube Seam
Для цилиндрической упаковки, avoid placing important branding on the spiral or vertical outer-wrap seam whenever the structure makes that area visually sensitive.
Designing on Hidden Areas
Some artwork can disappear beneath:
- Lid overlap
- Glue flaps
- Inner folds
- Sleeves
Поэтому, check the assembled package before approving the design.
Согласие & Устойчивое развитие
Packaging artwork can also contain regulatory or compliance information.
Depending on the product and market, this may include:
- Название продукта
- Ингредиенты
- Net contents
- Warnings
- Manufacturer information
- Batch area
- Штрих-код
- Recycling information
The brand, importer or responsible party should confirm the exact regulatory requirements for the destination market.
ФСК
If an FSC trademark is used, its use should comply with the applicable certification and trademark-approval requirements.
Поэтому, do not simply download an FSC logo and place it on packaging without confirming authorization.
Контакт с пищевыми продуктами
Food-contact safety depends on the approved packaging materials and full construction, not simply the exterior graphics.
В зависимости от приложения, покупатели могут запросить:
- Food-contact reports
- Отчеты о миграции
- Декларации о материалах
- Ink information
- Adhesive information
BRC and IFS
BRCGS Packaging Materials and relevant IFS systems may support supplier-quality or food-packaging requirements.
Однако, certification references and logos should only be used appropriately.
EUDR and EPR
For applicable markets and supply chains, packaging buyers may also need to consider material due diligence and producer-responsibility requirements.
Поэтому, regulatory review should happen before the final artwork is locked whenever these requirements affect printed information.
Sustainable Artwork Choices
Luxury packaging does not automatically require the maximum number of finishing processes.
Например, good typography combined with textured paper and one small foil logo may create a stronger premium effect than:
- Full lamination
- Large foil areas
- Several metallic colors
- Multiple UV coatings
Поэтому, good design can sometimes reduce production complexity as well as material use.
Как настроить
A smooth custom packaging artwork files workflow starts before the designer opens Illustrator.
Шаг 1: Send Product Information
Предоставлять:
- Название продукта
- Размер продукта
- Вес продукта
- Фотографии
- Physical sample if possible
Шаг 2: Choose the Packaging Structure
Select:
- Бумажная трубка
- Rigid box
- Складная коробка
- Drawer box
- Рукавная коробка
- Window packaging
- Telescopic packaging
Шаг 3: Confirm the Size
Approve final dimensions.
Do not finalize the artwork before this step.
Шаг 4: Choose the Material
Select:
- Крафт-бумага
- Художественная бумага
- Специальная бумага
- Food-grade material
- Фольга-лайнер
Шаг 5: Confirm the Insert
Опции могут включать в себя:
- No insert
- Картон
- Ева
- ЭПЕ
- Формованная целлюлоза
- Plastic tray
Шаг 6: Confirm Printing
Выбирать:
- CMYK
- Пантон
- One-color printing
- Combination printing
Шаг 7: Select Finishing
Possible choices include:
- Горячая штамповка
- Тиснение
- тиснение
- Точечный УФ
- Матовая ламинация
- Глянцевая ламинация
- Мягкая ламинация
- Ламинирование против царапин
Шаг 8: Request the Final Dieline
Once the structure and size are approved, request the final production dieline.
Шаг 9: Подготовьте иллюстрацию
Supply:
- ИИ
- Editable PDF
- EPS where appropriate
Also provide a PDF reference and, ideally, a 3D mockup.
Шаг 10: Подтвердите минимальный заказ
Provide realistic quantities.
Например:
- 500 шт.
- 1,000 шт.
- 3,000 шт.
- 5,000 шт.
- 10,000 шт.
Шаг 11: Confirm Lead Time
Share the required:
- Launch date
- Factory completion date
- Delivery date
- Destination
Шаг 12: Approve the Sample
Окончательно, проверять:
- Размер
- Структура
- Цвет
- произведение искусства
- Фольга
- Тиснение
- Вставка подходит
- Позиционирование продукта
Once these points are approved, mass production can proceed more efficiently.
Сопутствующие товары: Изготовленные на заказ бумажные тубы / Пищевая упаковка / Косметическая упаковка
Почему стоит выбрать упаковочную упаковку?
Pack Packaging поддерживает изготовление нестандартных бумажных туб и бумажных коробок от структурной разработки до массового производства..
Наше производство охватывает 20,000㎡, включая 2,000㎡ цех пищевой промышленности. Кроме того, monthly paper tube production capacity exceeds 10,000,000 куски.
Наш 20+ член команды дизайнеров can assist with:
- Dieline development
- Примерка продукта
- Artwork checking
- Выбор материала
- Insert design
- CMYK-печать
- Пантонная печать
- Горячая штамповка
- Тиснение
- Точечный УФ
- Выборка
- Production preparation
When customers send custom packaging artwork files, our team reviews the graphic layout together with the actual structure rather than treating the design as an isolated image.
Наши возможности OEM и ODM включают в себя:
- Нестандартные размеры
- Paper tubes
- Жесткие коробки
- Складные коробки
- Выдвижные ящики
- Рукавные коробки
- Крафт-бумага
- Художественная бумага
- Специальная бумага
- Пищевые материалы
- Cardboard inserts
- Вставки из ЭВА
- EPE inserts
- Вставки из формованной целлюлозы
- CMYK
- Пантон
- Горячая штамповка
- Тиснение
- тиснение
- Точечный УФ
- Матовая ламинация
- Глянцевая ламинация
- Мягкая ламинация
- Ламинирование против царапин
- Структурные образцы
- Printed samples
- Проверка качества
- Экспортная упаковка
Depending on the final materials, product application and destination market, supporting documentation may include FSC-related documentation, отчеты о контакте с пищевыми продуктами, BRC-related information, Информация, связанная с IFS, РоХС 2.0, REACH-SVHC and EPR support.
The exact documentation should always be confirmed against the final approved specification.
Часто задаваемые вопросы
1. What file format should I send for packaging printing?
Редактируемый ИИ, PDF or EPS files are commonly useful for packaging production. A PDF reference and 3D mockup can also make the intended finished appearance clearer.
2. Should packaging artwork be CMYK or RGB?
For standard process printing, artwork is typically prepared in a CMYK print workflow. Illustrator provides CMYK document mode and separation controls specifically for print output.
3. Do I need bleed?
If artwork reaches the trim edge, bleed is generally required. Illustrator supports defined bleed areas and bleed marks, while the exact amount should follow the packaging manufacturer’s specification.
4. Do fonts need to be outlined?
Fonts can be outlined where appropriate or supplied through an agreed packaged workflow. Always keep an editable master file because outlined text is no longer normal editable type.
5. Do foil, embossing and spot UV need separate layers?
Да. Clearly separated vector layers make it much easier for the prepress and production teams to identify each special process.
6. Can I send a Canva, JPG or PNG file?
You can use them as references. Однако, the packaging supplier may still require editable production artwork containing dielines, vector logos and special-finishing information.
7. Why does the printed color look different from my monitor?
Screen display and physical printing use different output processes, while paper, чернила, coatings and lighting can also influence the final appearance.
Поэтому, physical approval is recommended when exact brand color matters.
8. Can you help check my artwork before printing?
Да. The design and prepress team can review the artwork against the approved structure and identify potential production issues before sampling.
Узнайте больше о решениях для индивидуальной упаковки
Ищем больше вариантов упаковки? Откройте для себя наш полный ассортимент индивидуальной упаковочной продукции, предназначенной для различных отраслей и применений..
Складные коробки – Легкие и полностью адаптируемые картонные коробки для розничной упаковки..
Жесткие коробки – Жесткие подарочные коробки премиум-класса для люксовых брендов.
Гофрированные коробки – Надежные упаковочные решения для доставки и электронной коммерции..
Коробки с защитой от детей – Надежная упаковка для подконтрольной продукции.
Аксессуары — Пользовательские вставки, папиросная бумага, ленты, этикетки, и многое другое.
Бумажные тубы – Ознакомьтесь с нашей специальной коллекцией индивидуальной упаковки из бумажных трубочек для чая., кофе, косметика, свечи, духи, и другие товары премиум-класса на нашем специализированном сайте.
Нужна индивидуальная упаковка? Свяжитесь с нашей командой сегодня, чтобы получить бесплатное предложение и консультацию эксперта..
